Bosch 18V REVOLVE4000 Connected Green-Beam Self-Leveling Rotary Laser Kit GRL4000-90CHVGK

Bosch

18V REVOLVE4000 Connected Green-Beam Self-Leveling Rotary Laser Kit GRL4000-90CHVGK

The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes, for grading applications. This laser is powered by a Bosch CORE18V 4.0 Ah battery, providing extended runtime. Its green-beam laser is up to 4X brighter than standard red beams. The rotary laser is compatible with 4.0 Ah and 8.0 Ah Bosch CORE18V Li-ion batteries. It also features an alkaline adapter to use four (D) cells. The REVOLVE4000 is engineered with a cage overmold and an innovative handle design, and it is built to IP68 dust- and water-protection standards. It features Bluetooth® connectivity to a connected device, linking to the Bosch Leveling Remote App.

FEATURES:

• Fully featured rotary laser – has Dual Dial-In Slope, CORE18V power, Bluetooth® connectivity, uCAL user-calibration and more
• Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes
• Dual power source – for extended runtime and option of a 4.0 or 8.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries
• Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards
• Long working range – range of up to 4,000 Ft. with laser receiver, the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode

SPECIFICATIONS:

IP Rating	IP 68
Laser Beam Color	Green
Laser Diode	Class 2, 500-540 nm
Level Type	Self-Leveling, Up to 5°
Mount Threading	5/8-11
Operating Temperature	14° F / -10° C ~1 22° F / 50° C
Range	Up to 4,000-ft.

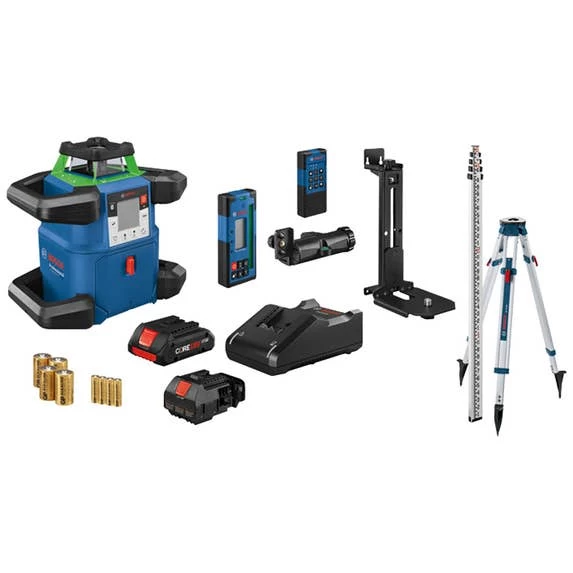

INCLUDES:

(1) GRL4000-90CHVG 18V REVOLVE4000 Connected Green-Beam Self-Leveling Horizontal/Vertical Rotary Laser

(1) LR40G Laser Receiver with Bracket

(1) GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery

(1) 18V Battery Charger

(1) BA1 Alkaline Battery Adapter

(4) D Batteries

(4) AA Batteries

(1) BT170 Heavy-Duty Aluminum Tripod

(1) GR13 13 Ft. Grade Rod

(1) WM6 Wall Mount

(1) RC5 Remote Control

(1) Carrying Case
